2BV5 121 liquid/water ring vacuum pump for EPS foam machine Product Description 2BV series vacuum pump has small volume, compact structure, directly connected motor, while installation, put it in horizontal plane, no need chassis. 2BV series vacuum pump works basing on water ring principle, that is, impeller is installed eccentrically inside of pump body, after the pump start up, working liquid forms liquid ring(which is concentric with pump body ) inside of pump body, impeller passes motor power to liquid ring. Liquid ring pulse periodically between the impeller vanes, while in pulsation, gas is suctioned in through disk suction inlet and discharged from disk exhaust vent. Pump Specifications: 2BV5 131 2BV5 series outline dimensional drawing: Applications: Packaging: Standard export polywooden cases. Customized packaging can be available. Pre-Sales Service Provide 24-hour reply. Provide suitable models according to clients' requirements. Provide detailed product specifications and reasonal prices. Supervise whole production time. Provide product's testing performance curve to customers. Provide inspection pictures to customers after we finish production. Provide installation manual. Under correct installation, normal maintenance and using,we guarantee one-year warranty. If product has malfunction,we'll reply you within 24 hour and provide solution or even send technical staff to spot after receiving maintenance notification. 1.  Q: Are you a manufacturer or trading company?   A: We are manufacturer of vacuum pumps and water pumps in China since 1986. 2.  Q: What's your MOQ?     A: One set is ok. 3.  Q: What's your payments terms?     A: T/T, Western Union...... 4.  Q: What certificates do you have?     A: CE, ISO 9001 .... 5.  Q: How about the warranty?     A: 12 months warranty since delivery. 6.  Q: What's the delivery time?     A: For different models,different motor specs and different material,delivery time is different,please double confirm with our sales team. 7.  Q: Can you do OEM brand?     A: Yes, welcome. 8.  Q: Quality reliable?     A: We have whole testing system controlled by micro-machine,testing performance curve can be sent to clients before arrange delivery. 2BV5 121 liquid/water ring vacuum pump for EPS foam machine Product Description 2BV series vacuum pump has small volume, compact structure, directly connected motor, while installation, put it in horizontal plane, no need chassis. 2BV series vacuum pump works basing on water ring principle, that is, impeller is installed eccentrically inside of pump body, after the pump start up, working liquid forms liquid ring(which is concentric with pump body ) inside of pump body, impeller passes motor power to liquid ring. Liquid ring pulse periodically between the impeller vanes, while in pulsation, gas is suctioned in through disk suction inlet and discharged from disk exhaust vent. Pump Specifications: 2BV5 131 2BV5 series outline dimensional drawing: Applications: Packaging: Standard export polywooden cases. Customized packaging can be available. Pre-Sales Service Provide 24-hour reply. Provide suitable models according to clients' requirements. Provide detailed product specifications and reasonal prices. Supervise whole production time. Provide product's testing performance curve to customers. Provide inspection pictures to customers after we finish production. Provide installation manual. Under correct installation, normal maintenance and using,we guarantee one-year warranty. If product has malfunction,we'll reply you within 24 hour and provide solution or even send technical staff to spot after receiving maintenance notification. 1.  Q: Are you a manufacturer or trading company?   A: We are manufacturer of vacuum pumps and water pumps in China since 1986. 2.  Q: What's your MOQ?     A: One set is ok. 3.  Q: What's your payments terms?     A: T/T, Western Union...... 4.  Q: What certificates do you have?     A: CE, ISO 9001 .... 5.  Q: How about the warranty?     A: 12 months warranty since delivery. 6.  Q: What's the delivery time?     A: For different models,different motor specs and different material,delivery time is different,please double confirm with our sales team. 7.  Q: Can you do OEM brand?     A: Yes, welcome. 8.  Q: Quality reliable?     A: We have whole testing system controlled by micro-machine,testing performance curve can be sent to clients before arrange delivery.

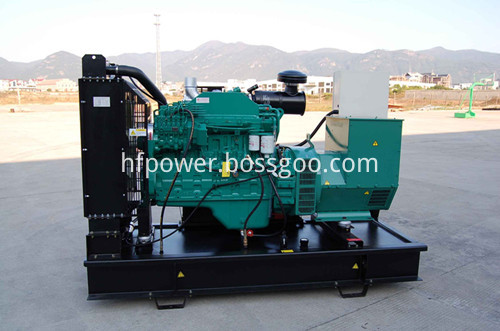

We can supply the CUMMINS Engine/Cummins Generator with different brand alternator,it can be silent type Diesel Generator Set and open type diesel generator set . The frequency is with 50HZ or 60hz depend on the country . we can supply the diesel generator set with 50HZ also with 60HZ .
Now we are recognized as a rapidly growing company that cares about the customes expectation constantly.
The engine is am internationally inspired supplier of wide ranges pf diesel engines in China , we have benn delivering great value ,through superior quality and reliable performance ., to meet diverse requirements in the field of diesel generator , marine , agricaultural equipments and construction applications etc.
Cummins Diesel Generator Set,Cummins Genset, Cummins Water Cooled Genset,Cummins Generator Shijiazhuang Houfeng Trading Co.,Ltd , https://www.hfdieselengine.com
Model
Power (kw)
Max VacuumÂ
Capacity (m³/min)
Weight (kg)
2BV2 060
0.81
-0.095Mpa
0.45
31
2BV2 061
1.45
0.86
35
2BV2 070
2.35
1.33
56
2BV2 071
3.85
1.83
65
2BV2 060-Ex
1.1
0.45
39
2BV2 061-Ex
1.5
0.86
45
2BV2 070-Ex
3
1.33
66
2BV2 071-Ex
4
1.83
77
2BV5 110
4
2.75
103
2BV5 111
5.5
3.83
117
2BV5 121
7.5
4.66
149
11
6.66
205
2BV5 161
15
8.33
331
2BV6 110
4
2.75
153
2BV6 111
5.5
3.83
208
2BV6 121
7.5
4.66
240
2BV6 131
11
6.66
320
2BV6 161
15
8.33
446
Product Details

Product display:
Â
Shipping:
Shipping method
Note
Express
Door to door, very convenient, don't need customs clearance or pick-up.
By air
Airport to airport, you need to do the customs clearance and pick up the goods at your local airport.
By sea
Port to port and you need to do the customs clearance and pick-up the goods at your local port.
Our Services
In-Sales Service
After-Sales Service
FAQ
Contact us:
Â
Model
Power (kw)
Max VacuumÂ
Capacity (m³/min)
Weight (kg)
2BV2 060
0.81
-0.095Mpa
0.45
31
2BV2 061
1.45
0.86
35
2BV2 070
2.35
1.33
56
2BV2 071
3.85
1.83
65
2BV2 060-Ex
1.1
0.45
39
2BV2 061-Ex
1.5
0.86
45
2BV2 070-Ex
3
1.33
66
2BV2 071-Ex
4
1.83
77
2BV5 110
4
2.75
103
2BV5 111
5.5
3.83
117
2BV5 121
7.5
4.66
149
11
6.66
205
2BV5 161
15
8.33
331
2BV6 110
4
2.75
153
2BV6 111
5.5
3.83
208
2BV6 121
7.5
4.66
240
2BV6 131
11
6.66
320
2BV6 161
15
8.33
446
Product Details
Â
Product display:
Â
Shipping:
Shipping method
Note
Express
Door to door, very convenient, don't need customs clearance or pick-up.
By air
Airport to airport, you need to do the customs clearance and pick up the goods at your local airport.
By sea
Port to port and you need to do the customs clearance and pick-up the goods at your local port.
Our Services
In-Sales Service
After-Sales Service
FAQ
Contact us:

Model NO.: 2BV5 121
Material: Impellor: Stainless Steel 304
Material: Pump Body: Cast Iron or Stainless Steel
Place of Origin: Anhui, China
Color: Blue or Customised
Certification: ISO9001:2008, ISO14001:2004,Ce;SGS
Application: Plastic Extrusion Line;EPS Foam Machine
Voltage: 220V/380V/415V/as Requested
Frequency: 50Hz/60Hz
Trademark: YHZKB
Transport Package: Standard Export Polywooden Case
Specification: 7.5KW; -0.095Mpa; 4.66m3/min
Origin: Anhui
HS Code: 8414100090
Model NO.: 2BV5 121
Material: Impellor: Stainless Steel 304
Material: Pump Body: Cast Iron or Stainless Steel
Place of Origin: Anhui, China
Color: Blue or Customised
Certification: ISO9001:2008, ISO14001:2004,Ce;SGS
Application: Plastic Extrusion Line;EPS Foam Machine
Voltage: 220V/380V/415V/as Requested
Frequency: 50Hz/60Hz
Trademark: YHZKB
Transport Package: Standard Export Polywooden Case
Specification: 7.5KW; -0.095Mpa; 4.66m3/min
Origin: Anhui
HS Code: 8414100090
